Port Sayısı:24 Adet
Veri Transfer Hızı:100Mbps
PoE Desteği:24 Adet
SFP Yuva:2 Adet
Rack Kasa:Uyumlu
Yönetim:Yönetilemez
DONANIM ÖZELLİKLERİ
Arabirim
  • 24× PoE+ 10/100 Mbps RJ45 Ports
  • 2× 10/100/1000 Mbps RJ45 Ports
  • 2× Combo Gigabit SFP Slots
    • Ağ Medyası
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-X MMF, SMF
    • Fan Sayısı2 Fans
    Fiziksel Güvenlik KilidiYes
    Güç Kaynağı100-240 VAC, 50/60 Hz
    Paket Yönlendirme Hızı6.5472 Mpps
    PoE+ Portları (RJ45)
  • Standard: 802.3at/802.3af compliant
  • PoE Ports: Port 1 – Port 24

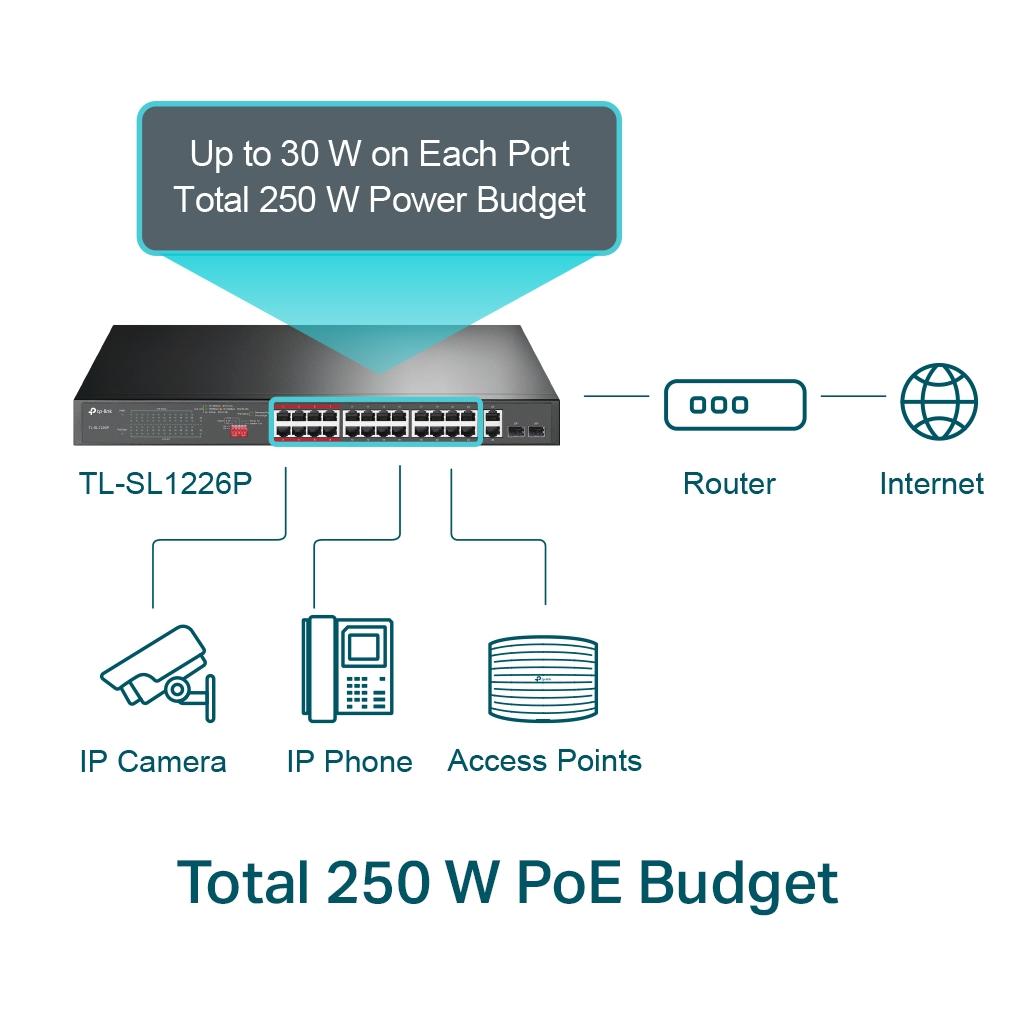

  • PoE Power Budget: 250 W
    • MAC Adres Tablosu8 K
    Jumbo Frame10 KB
    Switching Kapasitesi8.8 Gbps
    Boyutlar ( W X D X H )17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
    Maks. Güç Tüketimi18.32 W (220/50 Hz. no PD connected)
    294 W (220/50 Hz. with 250 W PD connected)
    Max Heat Dissipation62.47 BTU/h (no PD connected)
    1002.54 BTU/h (with 250 W PD connected)
    YAZILIM ÖZELLİKLERİ
    Gelişmiş Özellikler
  • Compatible With IEEE 802.3at/af Compliant PDs

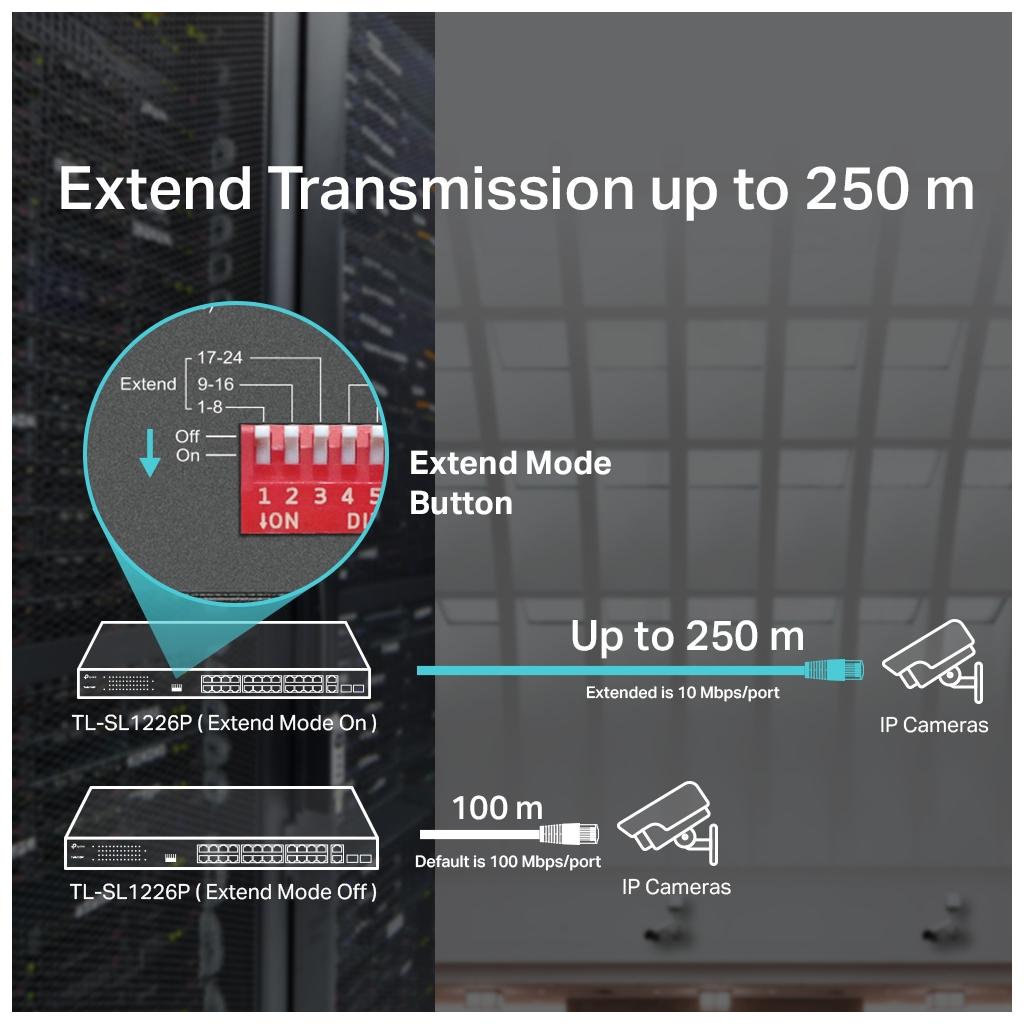

  • Extend Mode (Up to 250m PoE power supply and data transmission)

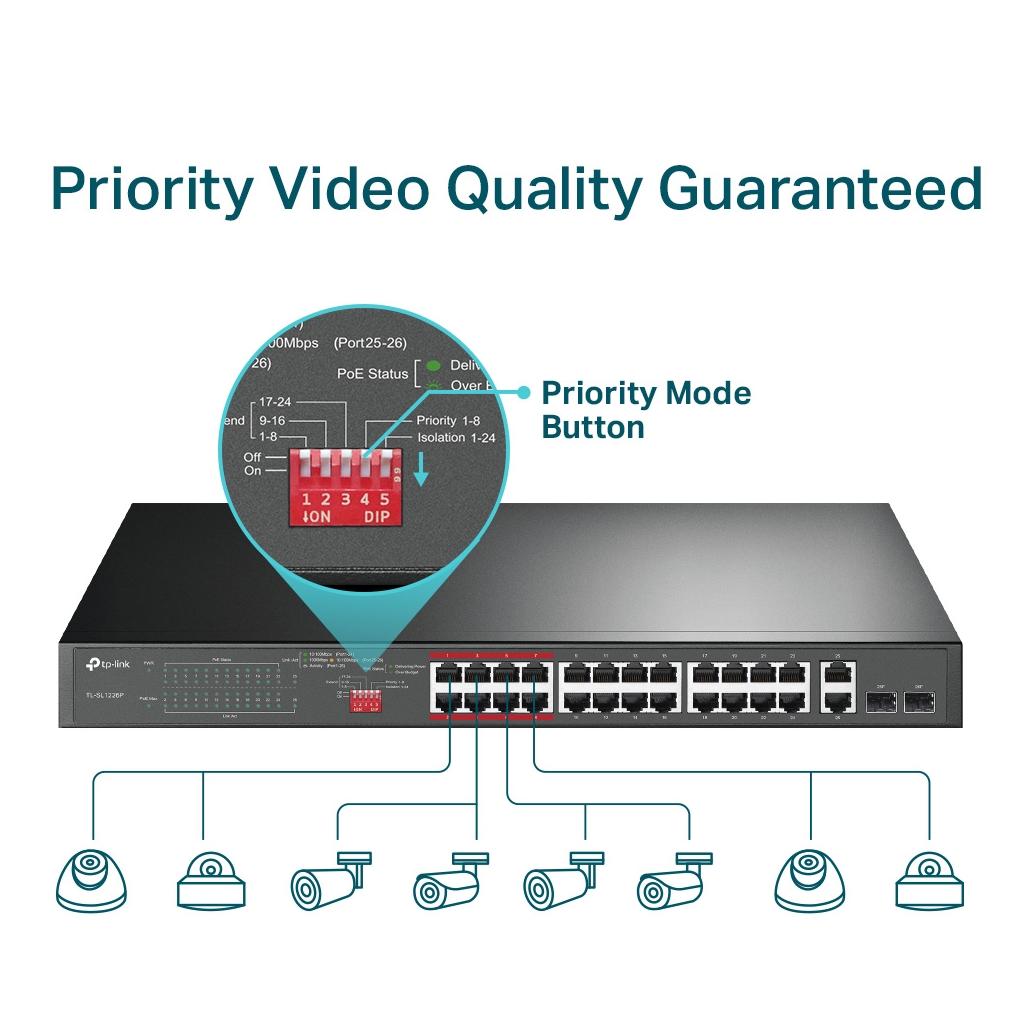

  • Priority Mode
  • Isolation Mode
  • PD Detection
  • Intelligent Power Supply
  • Mac Address Auto-Learning and Auto-Aging
  • IEEE802.3x Flow Control
    • İletim MetoduStore-And-Forward
    DİĞERLERİ
    SertifikaCE, FCC, RoHS
    Paket İçeriği

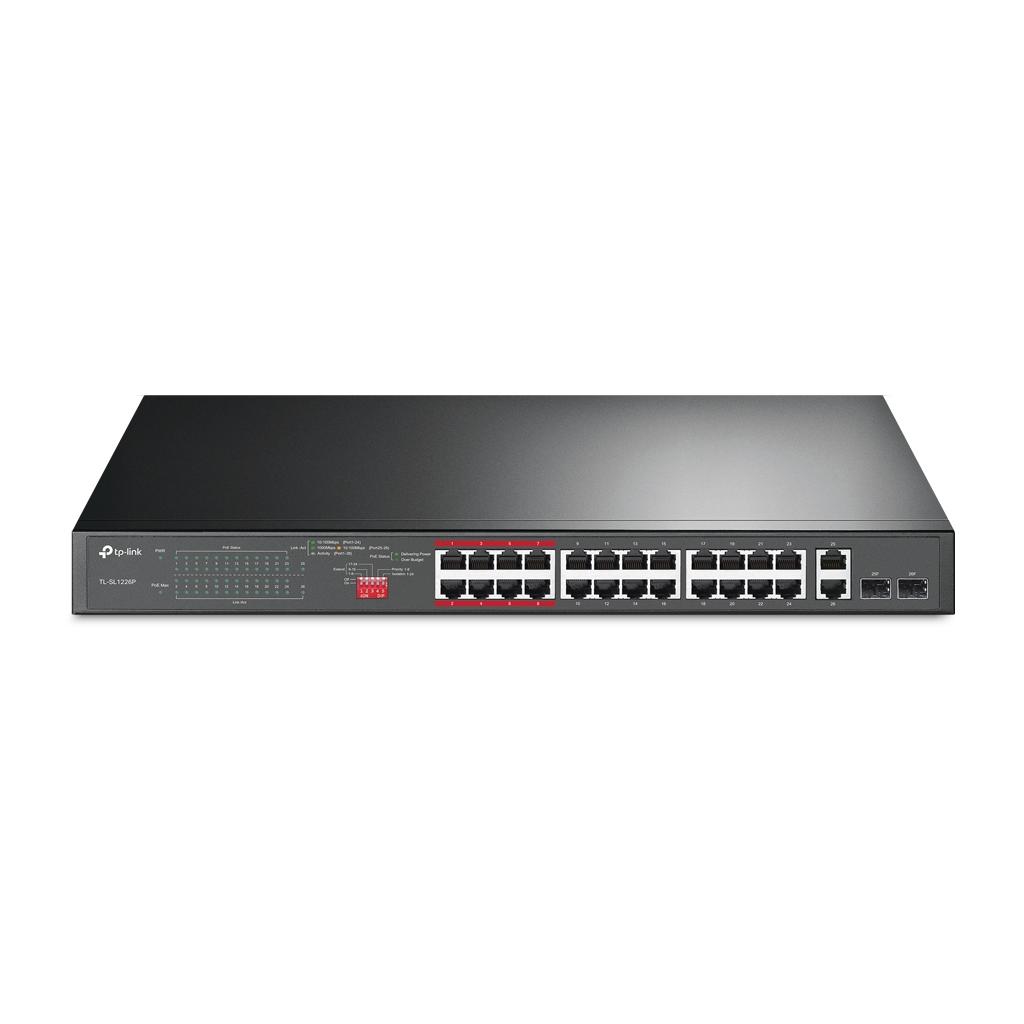

  • TL-SL1226P
  • Power Cable
  • Installation Guide
  • Two mounting brackets and the fittings
    • Ortam
  • Operating Temperature: 0–50 °C (32–122 °F)
  • Storage Temperature: -40–70 °C (-40–158 °F)
  • Operating Humidity: 10–90% non-condensing
  • Storage Humidity: 5–90% non-condensing
